Shoe sole cleaner machine installation and use

Shoe sole cleaner machine installation and use

The water-washing type shoe sole cleaner is simple in structure, ultra-thin and does not occupy much space. Moreover, it has a good cleaning effect and is easy to install, use and maintain. A washable automatic shoe sole cleaning machine is composed of many parts. For example, stainless steel body, motor, water pump, brush, controller, sensor, water level sensor, filter plate, etc.
Since 2012, Glikon has developed and launched a product of shoe sole cleaning machine. It has made tremendous contributions to get the dust free environment of many large, medium and small companies and customers. Comparing with other devices like the shoe cover machine, it is much more environmentally friendly. Also, the stainless steel automatic shoes cleanning equipment will not leave any scuff marks.
Our rubber sole clean machine is suitable for many places; it removes dirt and dust for different footwear. Customers’ applications include home, clean room, air shower, hospital, food processing factory, dust free workshop, etc. At present, we have updated the shoe cleaner item to the seventh generation. In order to remove dirt and clean white shoes soles at the entrance, Glikon has been innovating.
This entrance shoes cleanning system may be a bit confusing for companies that have never used it. How to operate, install, use and maintain the sole clean machine? Today, let’s make a targeted analysis and interpretation of the Glikon shoes sole cleaning machine product.

1. Shoe sole cleaner installation

1.1 Place the shoe cleaner

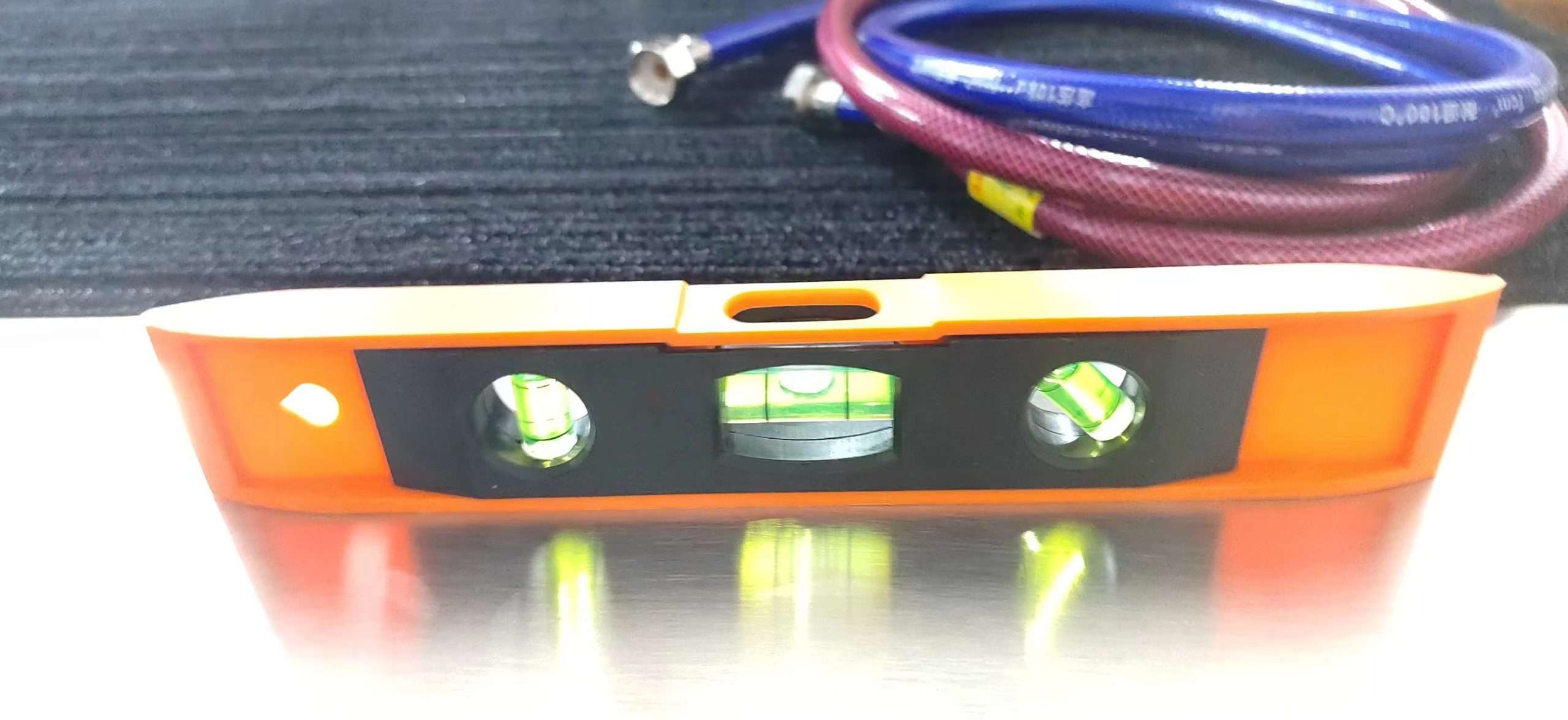

After buying the brand new cleaner for shoes, you need to install it in a certain location. Besides, please make the shoe cleaning machine product at a flat level.

1.2 Inlet and outlet pipes

After placing the shoe sole cleaner machine product, please pull out the inlet and outlet pipes by yourself. The water inlet pipe is a universal hose, which comes with our factory. It is in the sink under the strong absorbent sponge pad net board. While, the drain pipe is a yellow hose. Lay the cleaner shoes on its side. Then, connect one end of the water inlet pipe with the water inlet at the bottom of the shoe sole cleaning machine, and tighten them to prevent water leakage. At the other end, please connect with the customer’s water pipe. For this operation, please arrange the factory’s own handy man.

The yellow drain pipe has been docked with the washing machine at the factory. And the other end of the drainpipe should be connected with the drainpipe system. If you do not have your own drain pipe, you can use a four-point pipe to make the system. And then dock with the reserved end of the drain pipe. Make sure that the docking is complete and does not leak. After the inlet and drain pipes are docked, please put the cleaner shoes and boots equipment where you want to install it.

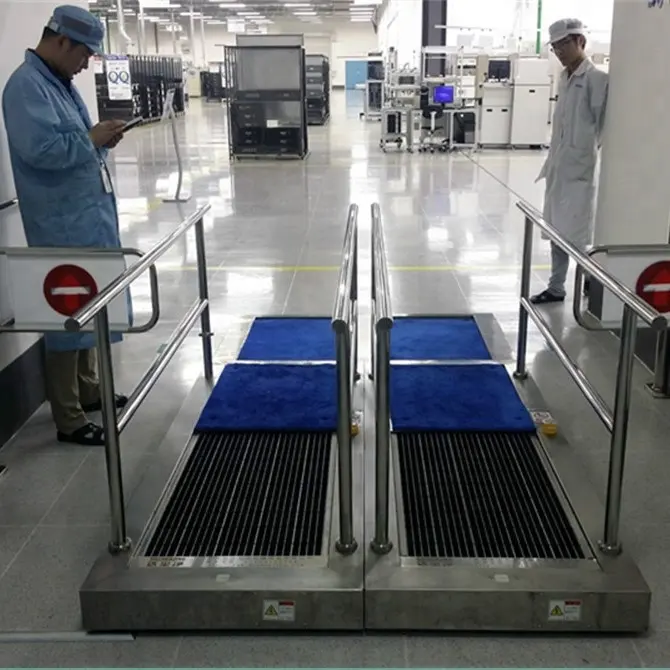

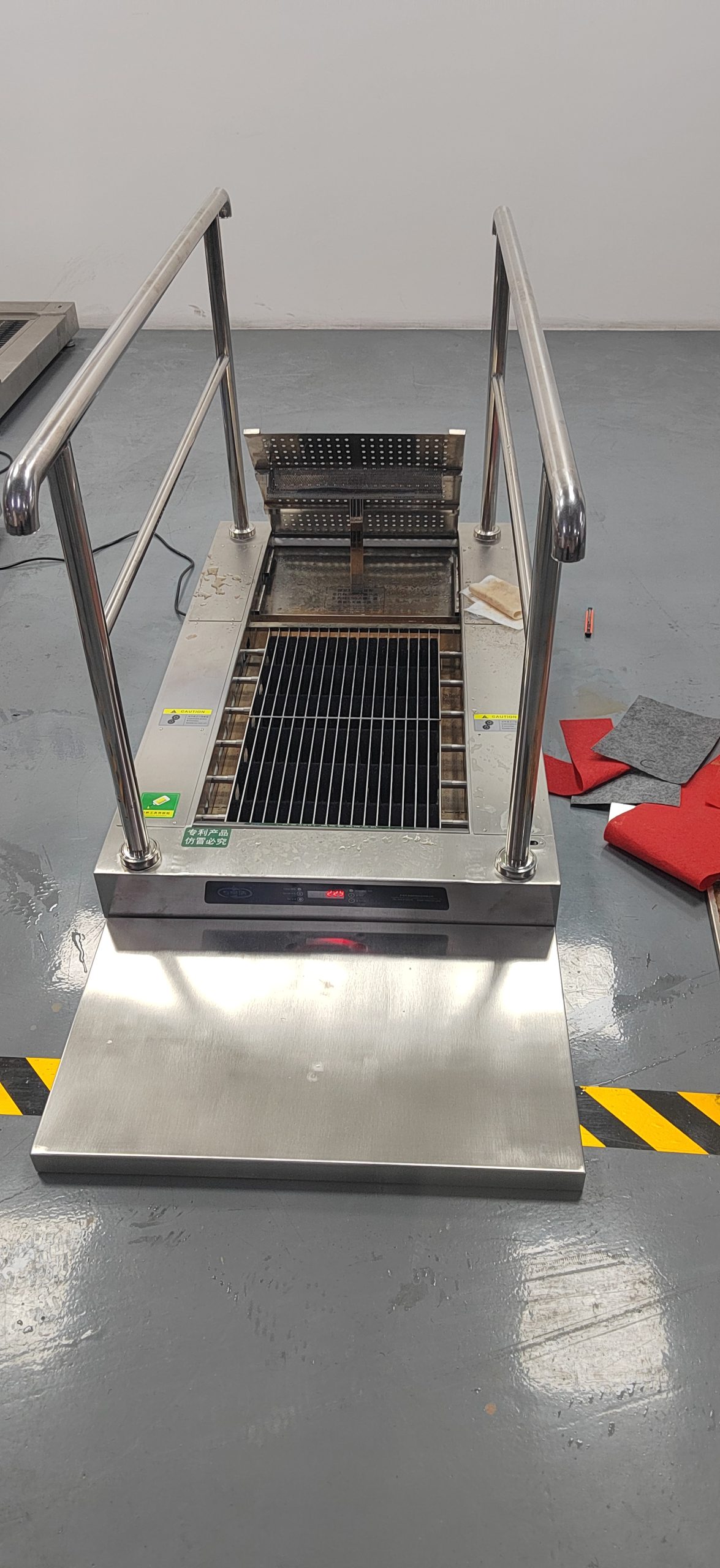

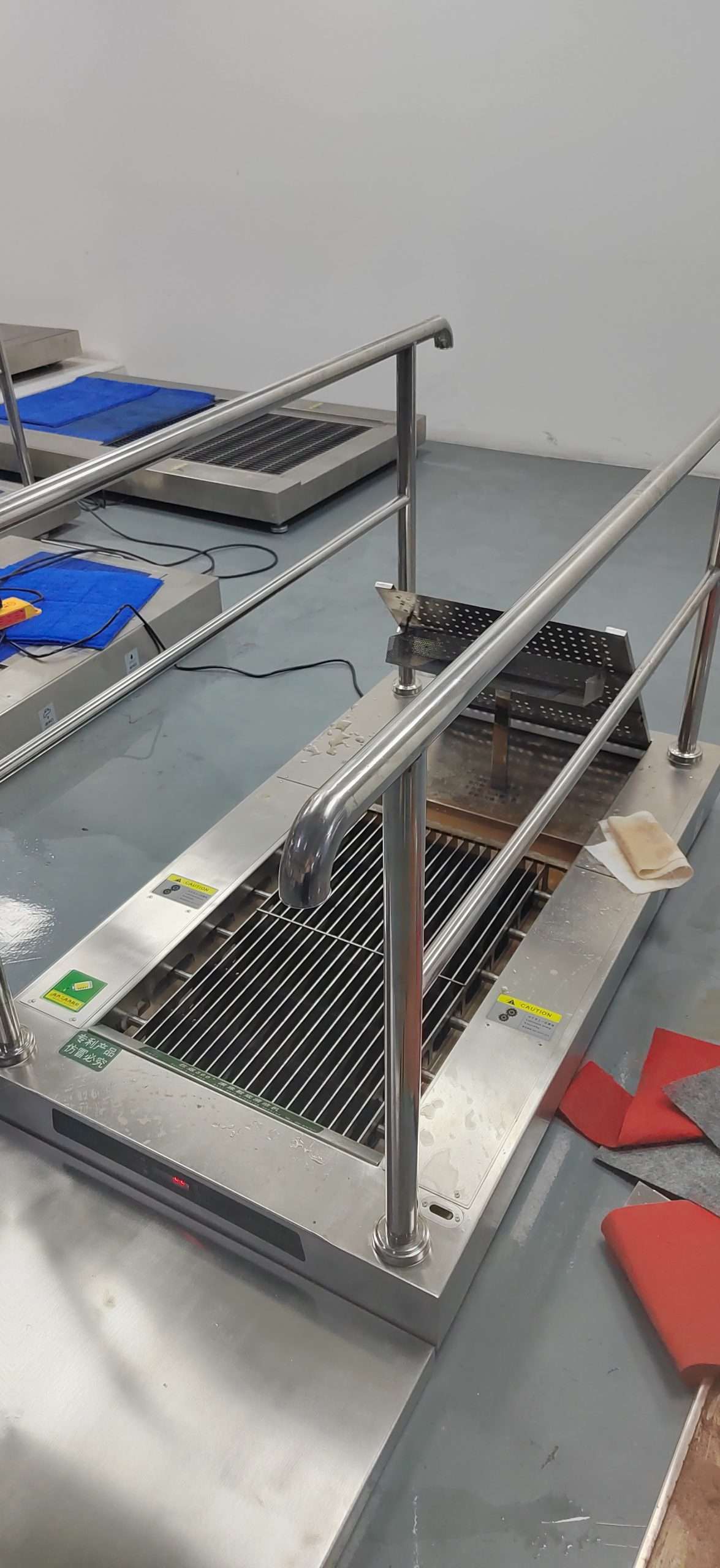

1.3 Handrail installation

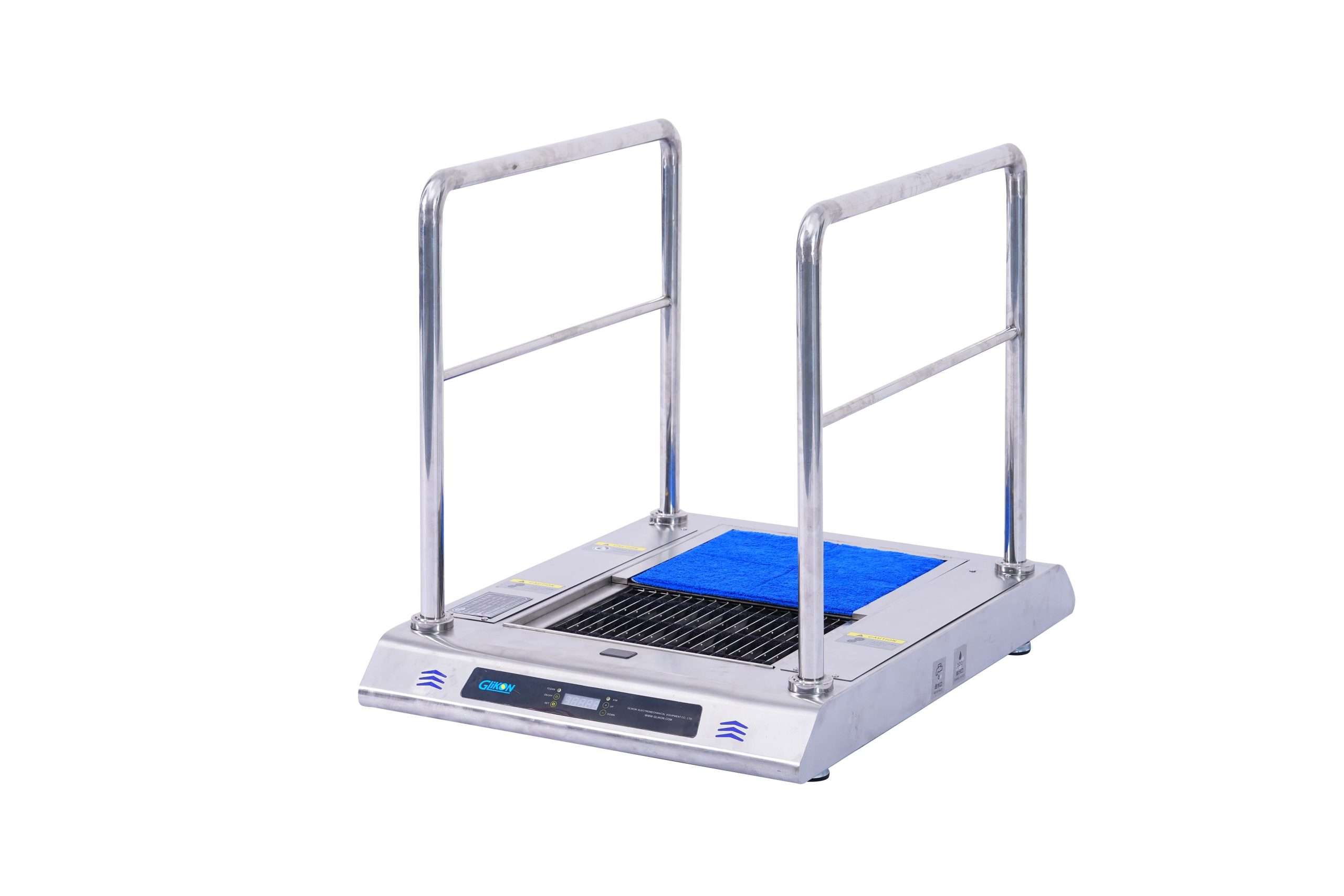

If you buy the white soled cleaning machine for industrial use, such as a food processing workshop, it has handrails. So, at first, use scissors or a utility blade to cut the bands of them. Then, place the beautiful sheath of the handrail base at the left and right guardrail holes of the washing machine. Insert the corresponding foot of the guardrail into the air, and shake it to make sure the proper installation.

1.4 Power supply

First, pull out the leakage protection plug (110V-220V) preset on the bottom of the shoe cleaners. Next, plug the socket into its own three-hole board. Then, turn on the switch of the board and observe whether the leakage protection socket’s indicator light is on. If the indicator is off, please press the switch button on the leakage protection plug. After opening, the indicator light is on, the device is powered on, and the installation is complete.

2. Shoe sole cleaner machine use

Installing the inlet & drain system and power supply of stainless steel shoes clean product. After turning on the power, the inlet and drain switch, customers can use the automatic shoes sole cleaning machine.

2.1 Brush the white soled boots and shoes

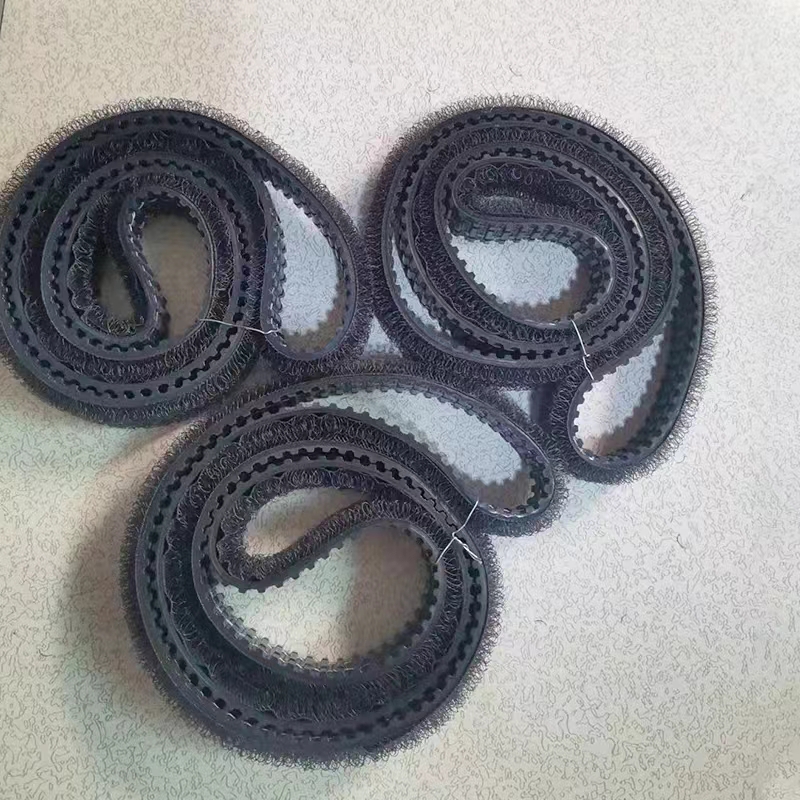

When a person passes the radar sensor at the entrance of the shoe soles cleaner products, the device will automatically sense and drive the motor. The belt brush will drive the water that enters the sink through the water inlet pipe to start running and cleaning shoes. If the person walks normally on the brush surface of the cleaning machine automatic, the brush and water can start to remove dirt and clean shoe soles. If you purchase a relatively small brand new automatic shoe cleaning product, please passers-by stand on the boot wash station for three or four seconds. Otherwise, the shoe clean will not be complete. If you purchase large-scale shoes cleaning products for food processing workshop, you can walk at a normal speed.

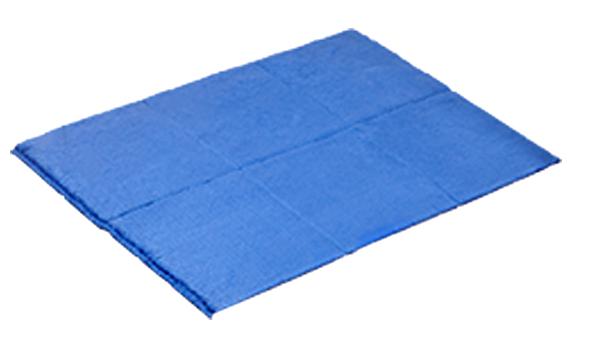

2.2 Absorb residual water from the soles in the dry area

After brushing the shoe soles, people pass through the machine products dry area with a strong absorbent pad. The absorbent pad absorbs the residual moisture of the shoes soles to achieve clean and dry sole. Therefore, guests enter the room without bringing water. Due to the number of personnel, the product size is different. In order to achieve a better shoes cleaning and drying effect, please reserve a strong absorbent pad for replacement. If the rubber boots dry area is particularly small, please add a strong absorbent pad of sufficient size according to your own situation.

3. Automatic shoe sole cleaner machine daily maintenance

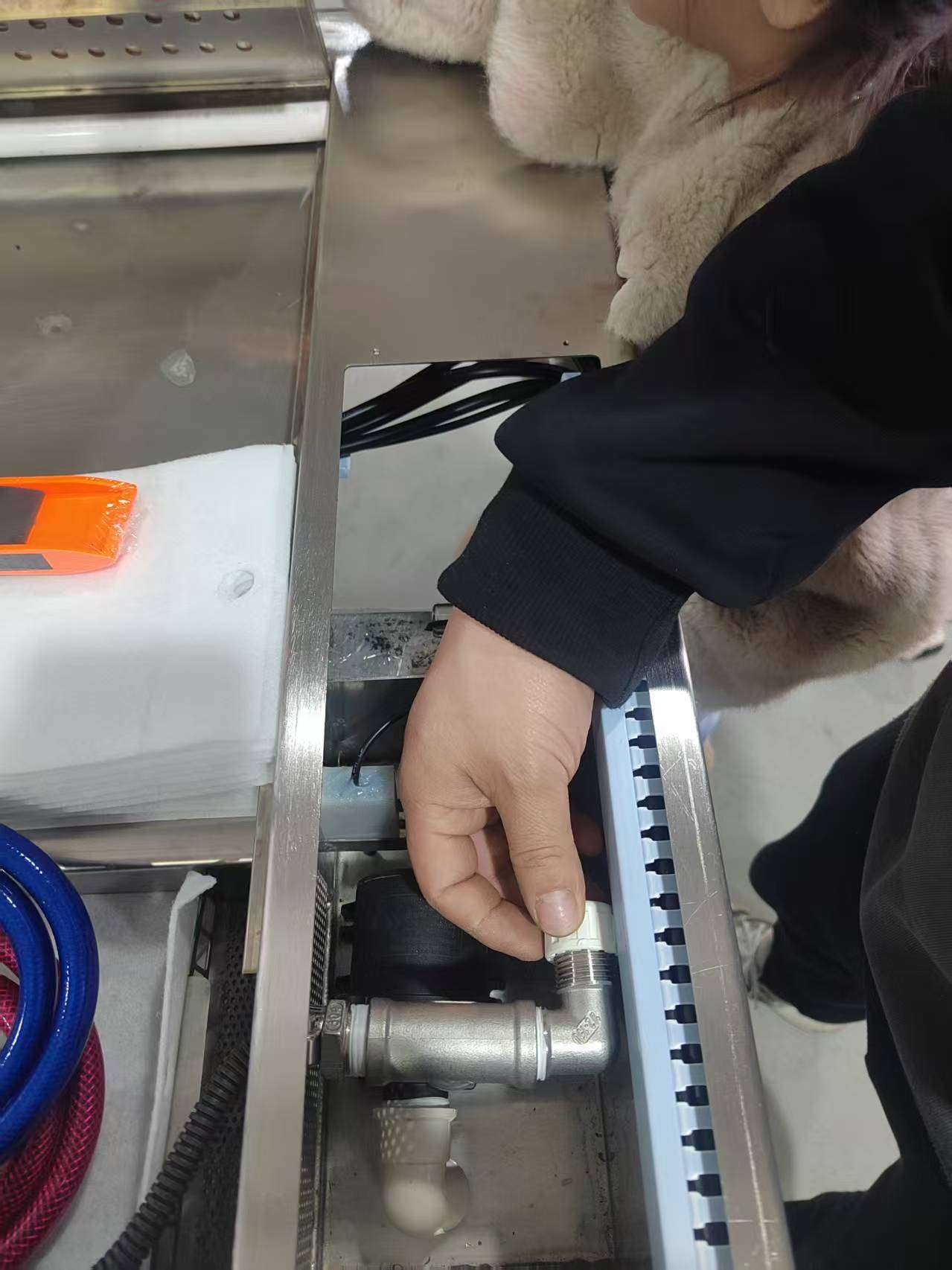

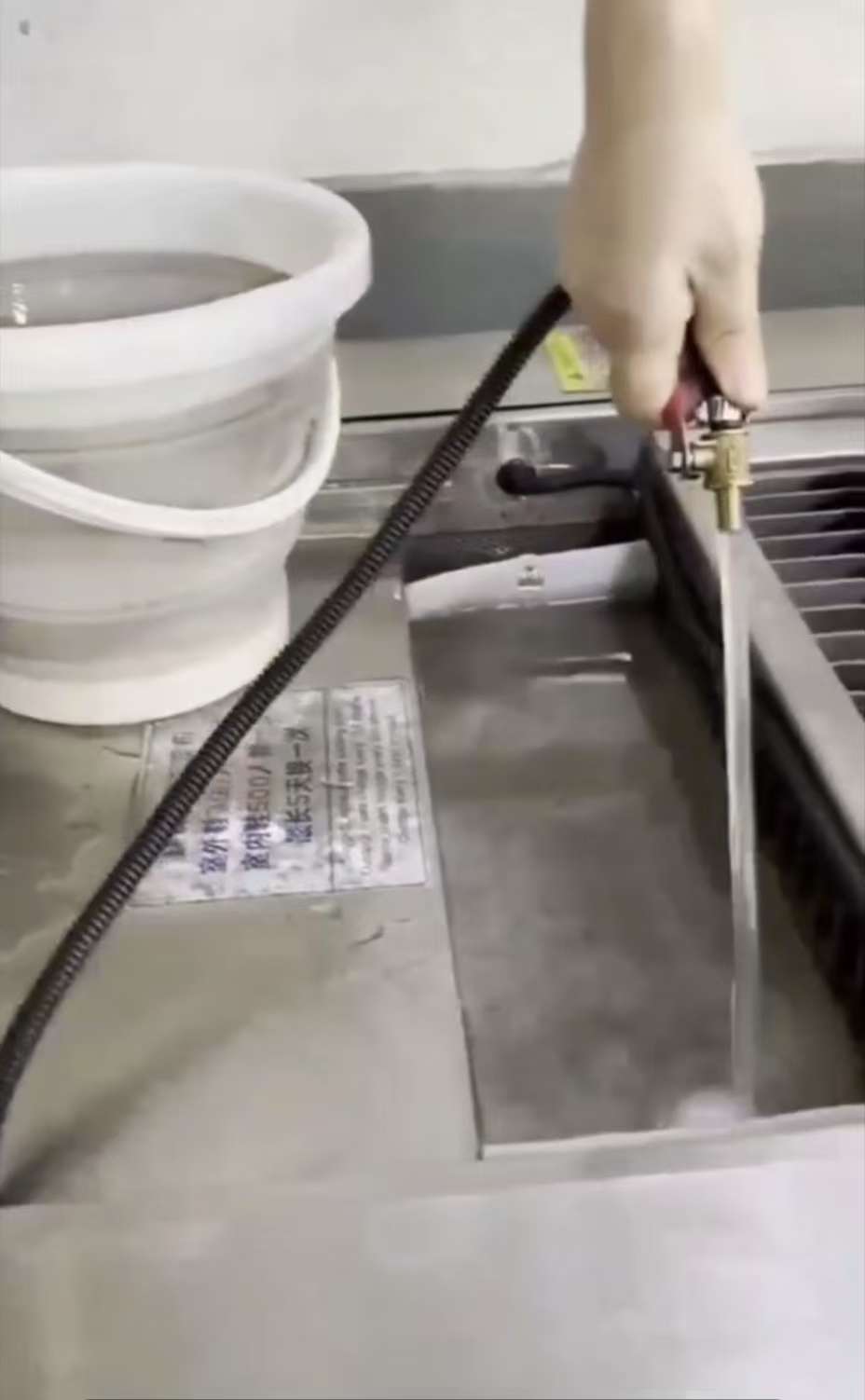

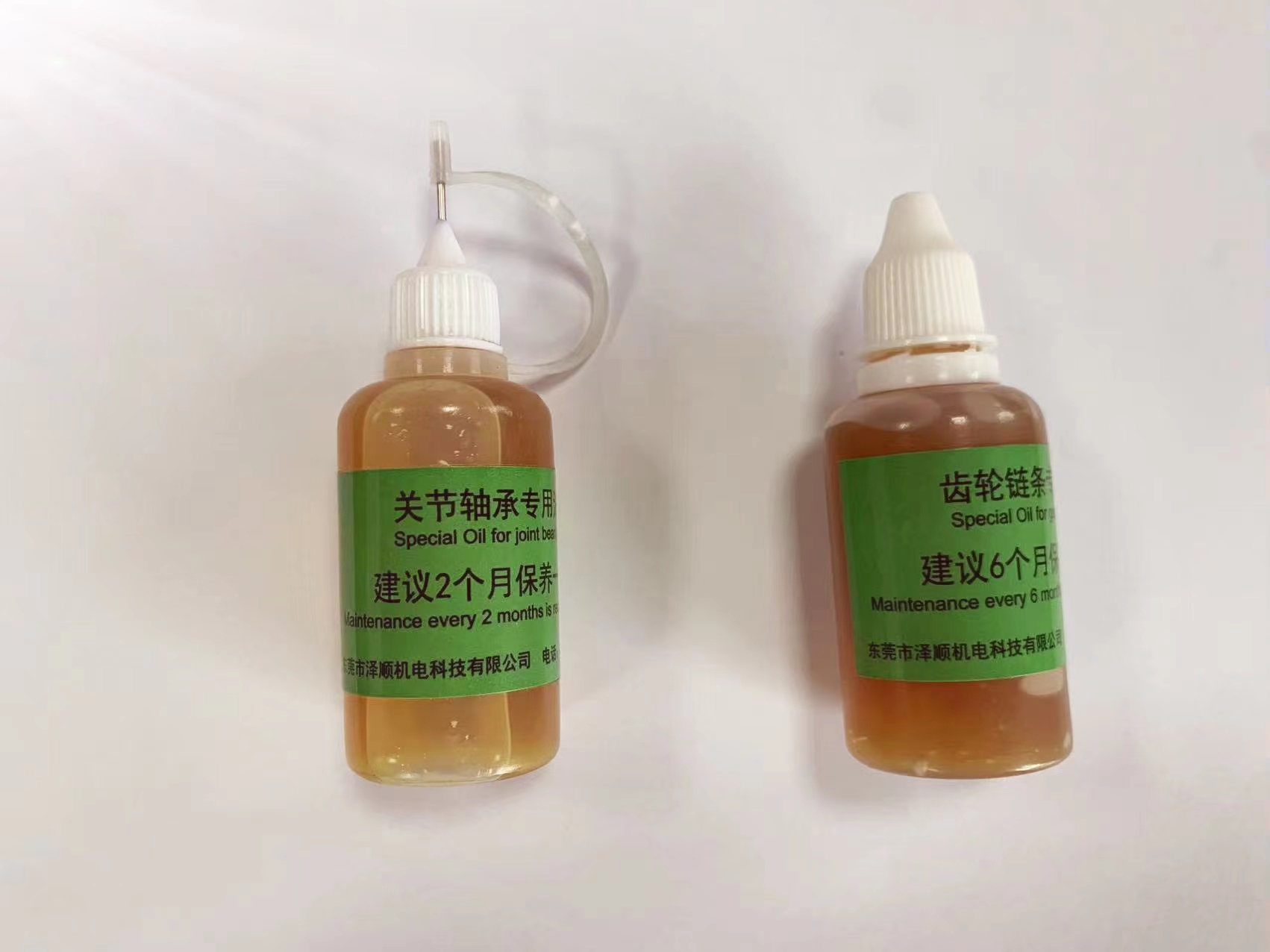

Firstly, clean up the garbage and debris in the sewage tank every day. Secondly, add grease to the motor chain of the shoes sole cleaner machine (marked on the equipment) every three months. Thirdly, replace the shoes washing absorbent pad from time to time. To achieve a better white soles cleaning effect, we must change the water in shoes cleaners every day to forcefully clean up the garbage. It is strictly forbidden to open the controller without guidance, and it is strictly prohibited to enter the controller of the shoe sole cleaning machine. Besides, to prevent the chain from corroding and avoid the fatal damage to the shoes cleaner machine, please fill the butter once every 2-3 months. When cleaning the garbage on the white shoes sole washing machine, please open the sewage pump compartment from time to time. Please clean the sediment thoroughly on the sole cleaning products for half a month. People will be tired after working for a long time. They also need to eat and take rest. Similarly, even the best equipment needs maintenance and upkeep. Equipment that creates value for you permanently but does not require “oil supply” does not currently exist. Based on this, if you want sole cleaning products to create more value for you, please do daily maintenance to achieve a better cleaning effect. Any demands of the machine, please feel free to contact us.
Shoe Sole Cleaning Machine Instruction

Shoe Sole Cleaning Machine Instruction

1. Sole cleaning machine features

1.1 Integrated block control system

The first difference between products from Glikon China and other brands is the integrated block control system. Our stainless steel automatic shoe sole cleaner product uses the latest tech. It integrates many functions into a module, such as injection and drainage system, water level protection, working time control, sewage water exchange system, and overload protection. Until now, we have realized the multi-functional integrated control in a small machine box. The latest integrated module has reliable stability, precise control, high efficiency, simple operation, and convenient maintenance. And it’s an integrated operation control system that no other related manufacturer can achieve.

1.2 Glikon sole cleaning machine water-exchange method

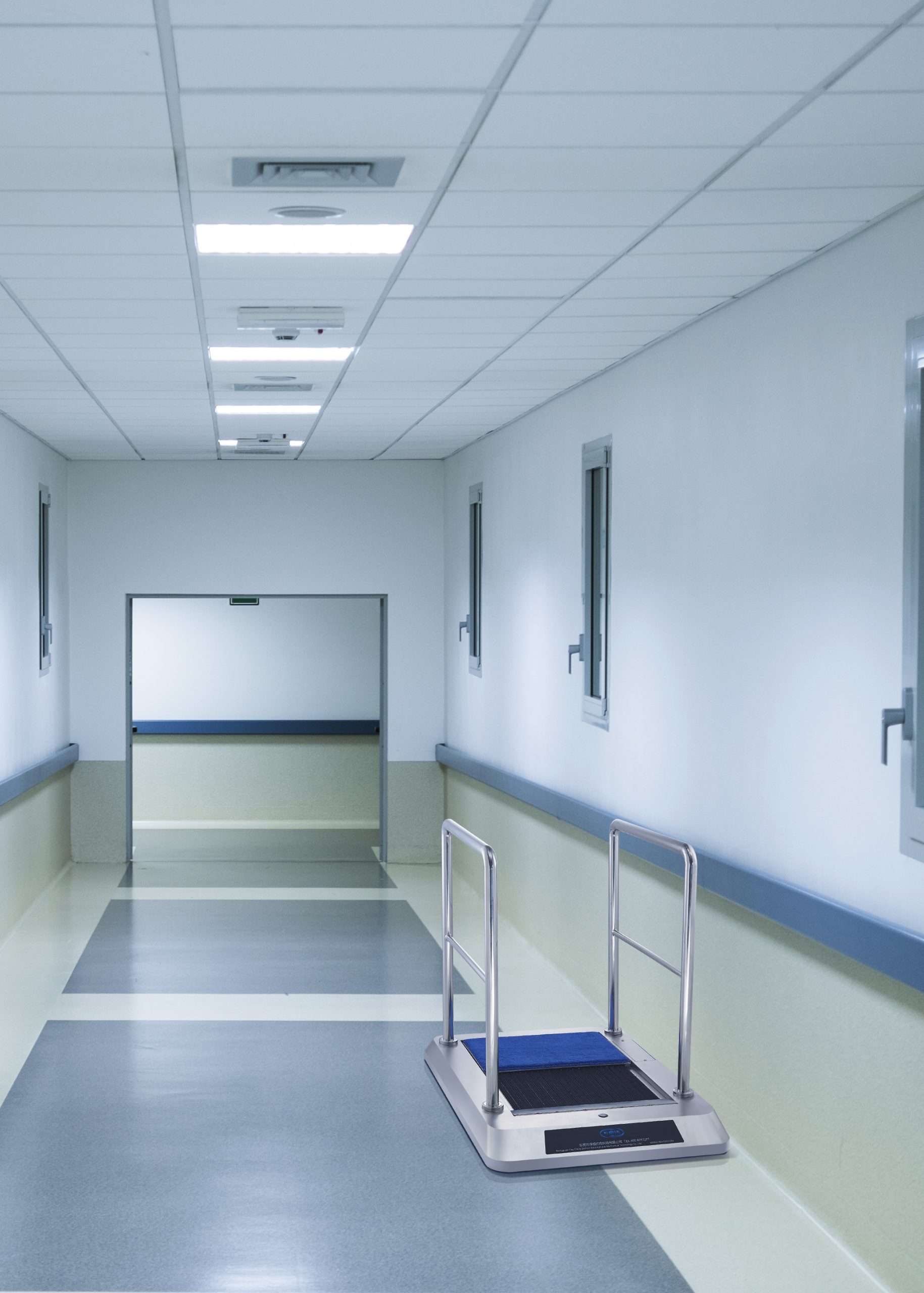

Our sole cleaner machine product is suitable to use in industries of pharmaceuticals, food, hospital operating rooms, precision instruments, dust free workshop, conference rooms, air shower, clean rooms, optics, hotels. Item code ZS-SJ001, 002, 004, and 005 products are mainly for public use, and other related bigger sizes are for industrial use. We can set new equipment to enter the water automatically. To achieve the purpose of automatic drainage, the sole cleaner for shoes should connect to a drainage pipe.

There are three protections for the shoes sole cleaner under automatic water change. They are no water protection, water level protection, and high water level protection. We can set the interval time of drainage and choose different water change method according to customers’ needs. And it can avoid some problems with no-water idling and overflowing water. In general, when the stainless steel shoe sole cleaner works for 0-60 minutes, it changes water one time.

1.3 Water level switch fault protection

When the machine detects the high water level switch is closed, and the low water level switch is open, the controller immediately shuts down all loads. We use a microwave water level sensor with high reliability to protect the high and low water levels when it triggers three times. 1,2,3 minutes, the water level is too high or insufficient; the automatic shoe sole cleaning machine will alarm and shut down automatically. We can use the manual button to enter the manual mode, and the whole stainless steel machine product stops working at the same time. Press the drain switch again to restore, or automatically return to normal after 90 seconds.

1.4 Water overtime protection

If the low water level switch cannot be closed when the customer continuously adds water for the set time, the shoes sole cleaner will report a fault (motor and pump operation prohibited). However, the solenoid valve of the shoe sole cleaner continues to open, and regular operation resumes once the water supply is normal. We adopt a high-reliability microwave water level sensor, three triggers to protect high and low water levels. If the water level is too high or insufficient in 1,2,3 minutes, we make sure that the shoe sole scrubber will alarm and stop automatically.

1.5 Shoe sole cleaner water pump

The water is pumped automatically after every set time. And this function can be disabled or enabled. The method of use is to press and hold the on-board button for 5 seconds to switch. After the switch is successful, the green light status changes. Flashing means disabled; steady light means enabled. And the pump is prohibited from automatically pumping water when disabled.

2. Shoe sole cleaning machine function description

How to clean the soles of shoes? For the general public, we often get bristle brushes for sneaker cleaning to remove dust and dirt. After drying them, make the shoe care for long term using. But it needs to take off the shoes you wear while washing dust and dirt. So how to clean shoe soles when you go to the dust free workshop or air shower with dirty shoes? We highly recommend there should be a Glikon machine which provides the best automatic shoe cleaner service. It’s easy to use; people wear a pair of shoes step on it and then get 99% dust and dirt free.

2.1 Set the clean time

After learning how to clean shoes soles with machine, please try to set the clean time on your own. In general, you will get a default value when our new washing machine product leaves the factory. We set it according to the general shoes sole cleaning requirement. But you can also follow your needs and adjust it within 1-60 seconds from normal to deep cleaning. And the non-standard is set separately.

2.2 Water inlet description

It is using 24V pulse solenoid valve. It’s easy to get a long service life and stable performance. Adopting three consecutive triggers of microwave water level sensor, if no electricity, then no water inlet. So it can avoid sudden power failure, which causes water overflow of the equipment.

2.3 Shutdown function during no water

If the best new washing machine product can’t get the water level in 1, 2, or 3 minutes, it will automatically alarm and stop working. Preventing the waterless work, failing to reach the clean effect of dust and dirt free, shortening the equipment life, and other related damages.

Key instruction: there are 1, 2, 3 buttons, we adjust it according to the water pressure differences. They mean that the power machine automatic alarm and shut down if it doesn’t get the water level in 1, 2 or 3 minutes.

2.4 Manual function description

Customers unconditionally install the water inlet pipe and the sewage pipe. They can adopt manual water addition and sewage discharge functions, and make switch by pressing button 6. Besides, long press button four can cancel all alarm protection functions.

3. Shoes sole cleaning machine advantages

The Glikon shoes cleaner machine products will not smell after using it for a long time. In general, customers should adjust the time to drain and change the water, depending on the flow of people. We use grid support and landslide rapid drainage. So there is no residue at the bottom of the sump. Also, long-term using will not cause sewage accumulation and odor, which is not available in many shoe clean machines on the market. Brush belt of Glikon white soles cleaner is integrally formed by vulcanization and has no joint. The length of bristle brushes reaches 8-10MM, and cleaning white shoes soles is more thorough without dead corners. Long-term friction of the shoe soles will not cause great damage, and it will last longer, will not break, and is durable. The Glikon China sole cleaner has the brand new upgrade of Chinese core, independent research and development of core technology. Radar sensor intelligent control, no diving, and no dead angle, three seconds of rapid shoe cleaning, saving you every second. Simple installation and maintenance, super clean and durable! Glikon Technology’s fully automatic intelligent shoes sole cleaning machine is suitable for all kinds of places. There is no splash, but fully automatic water injection and drainage, low power consumption, and good shoes cleaning effect even for white shoes. Also, it’s convenient to install, easy to use and maintain the machine in the later period. Glikon China independently developed the best sole cleaning machine that makes the environment better. The sole cleaning machine creates more value for the enterprise and makes the high-end atmosphere of the enterprise environment higher-grade.
Everything you must know of boot cleaner machine

Everything you must know of boot cleaner machine

When it comes to the automatic boot scrubber in the entrance cleaning system, each person has his or her own opinion. And boot washing systems on the market are also various. After many years of precipitation, the brand of imitation scrubbing system product has sprung up like mushrooms. The quality of footwear sole cleaners in the market is uneven. And users do not know how to choose one shoe sole cleaning machine product with strong stability and high quality. That’s why I introduce our machine here.

1. Industrial boot scrubber components

Glikon’s footwear sole cleaning machines products mainly consists of many parts. They include stainless steel body, motor, water pump, boot brush, controller, radar sensor, water level sensor, filter plate, water absorption pad, and so on. In the cleaning station area, side brushes are soaked in the water tank and scrub the soles with enough water. Customers walk over the belt of boot brush, and then the boot and shoe soles can be cleaned. After that, go to the quick-dry area, absorbent cotton does its job and absorbs excess water from soles of boots and shoes. Finally, it achieves a dust-free and dry effect.

The water inlet and drain of our stainless steel boot cleaners are fully automatic. Also, they have automatic induction, and cleaning machines will stop when people leave. There is no need to stay, go through the heavy duty boot washer, and remove 99% of the dirt from the sole. Clean the dirt on soles of your boot and shoes at the entrance to keep them clean. The automatic boot scrubber helps provide a clean and comfortable production and office environment. By using this product cleaning solution, it then meets the clean environment demand.

2. Automatic boot scrubber features

Glikon water washing shoe sole cleaner is ultra-thin, easy to install, and maintain. Also, it needs one small space, has one simple structure and good sole cleaning effect. There is no need to occupy human resources. And only occasional basic maintenance is required. As a result, the industrial shoe cleaner machine on site can continuously create value for the enterprise and save labor. In some workshops which want to reduce cost, people use shoes covers for visitors. But it’s not convenient to use. Each time visitors come, they need to bend and wear the shoes cover product. When they leave, bend down again to take it off. So, the automatic shoe sole cleaning machine can replace non-recyclable products like shoes cover and sticky mats. Also, it makes a massive contribution to protecting the environment.

3. Boot cleaner machine usage scenario

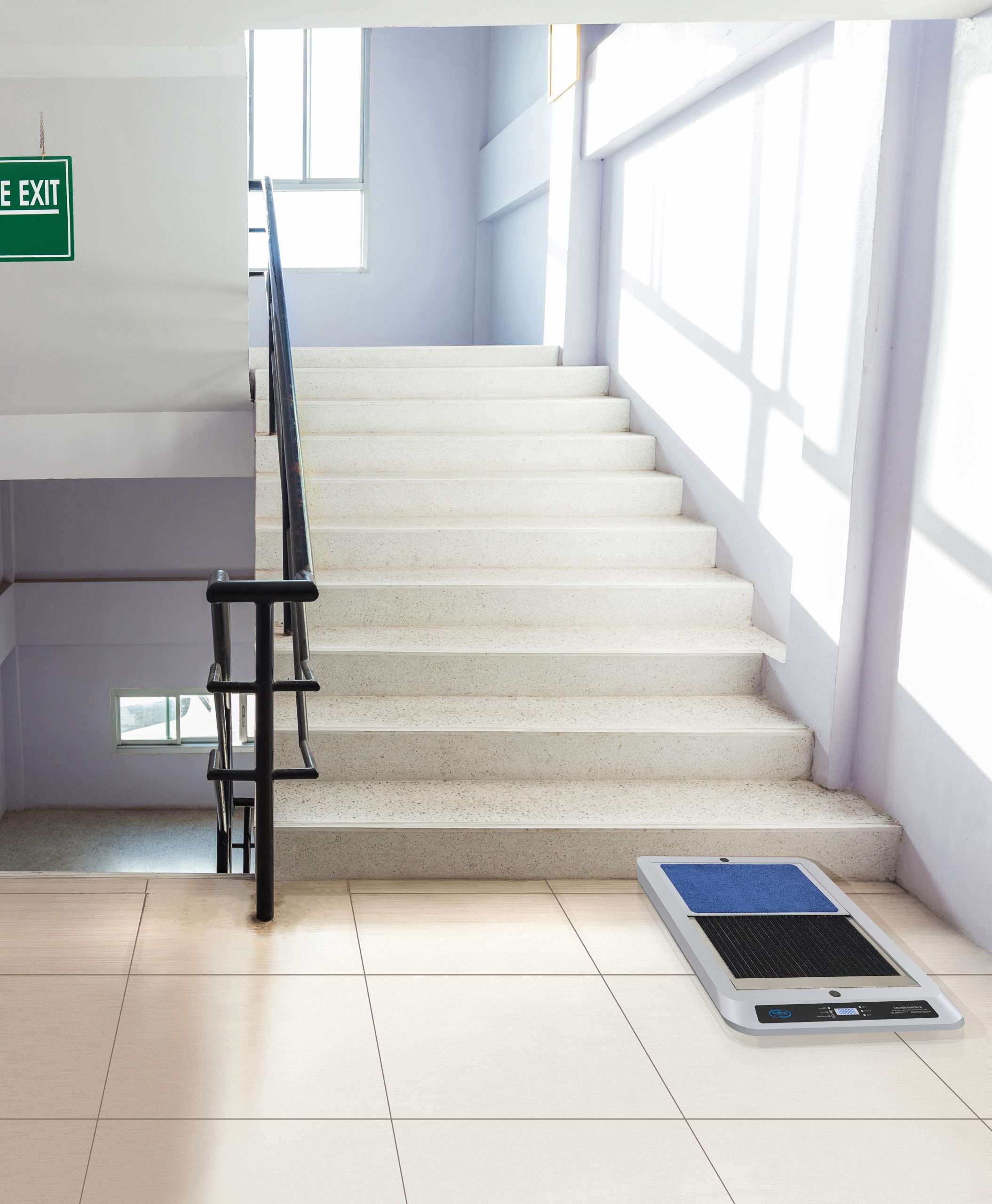

Our automatic boot scrubber is not only suitable for families, but also offices, laboratories, computer rooms, TV stations, hotels, photo studios, workshop and clean room. Besides, this boot washing station is also applicable in unique places. For example, hospitals, food factories, pharmaceutical factories, breeding plants, and so on. For different applications, you may need different dimension boot cleaners products to use. Glikon has some existing scrubbing system models of the boot cleaners for you to select. If you need to customize the size, click here to contact us.

Product Model: ZS-SJ1001.
Dimension: 835*570*80mm.
Price: $859.00
Product Model: ZS-SJ1005.
Dimension: 945*660*80mm.
Price: $1,050.00
Product Model: ZS-SJ1002.
Dimension: 835*570*80mm.
Price: $829.00
Model: ZS-SJ1000
Dimension: 1000*750*140mm
Product Model: ZS-SJ1004.
Dimension: 1005*660*80mm.
Price: $1,150.00
Model: ZS-SJ2000
Dimension: 2000*750*140mm
Model: ZS-SJ3000
Dimension: 3000*750*140mm

More info, contact us for a sale price quote. Email address: sales@glikon.com

These products have reasonable design, beautiful appearance, advanced technology, and convenient use. Also, boot scrubbers bring cleanliness and convenience to thousands of households and workshops.
For example, when you cut the grass in your garden, the rubber boots you wear are full of mud, dirt and grass clippings. To avoid staining the floor, you can walk on the boot cleaner machine to wash your heavy duty rubber boots before entering the home. For pharmaceutical factories, sometimes it needs aseptic conditions to make research and development of drugs. In this situation, the work boots should not only have no dirt, but also need to be disinfected. So how to sterilize?
You can pour disinfectant into the water sink of the sole cleaner. When customers put their work boots on the washing area, the sterilized water will kill the bacteria and viruses. By using the heavy duty shoe cleaning machine, the dust, dirt, and virus reduction requirement can be achieved.

4. Industrial shoe cleaner machine application industry

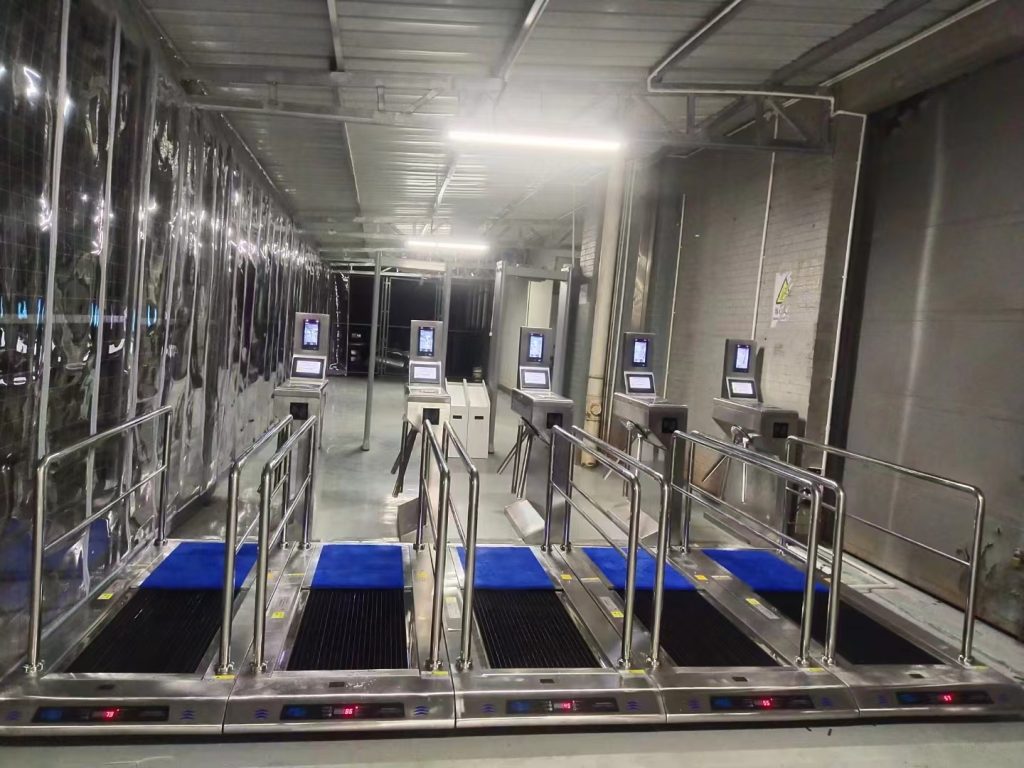

What industries do boot cleaning machines apply? In general, the automatic industrial boot scrubber is suitable for all kinds of industries with relatively high environmental requirements. For example, industries of aerospace, high-speed rail, electronic appliances, machinery, hardware, food, manufacturing, mobile phone, breeding, automation, exhibition, laboratory research and development, semiconductor production, medical, purification system, etc. Especially in dust-free workshops, almost all of them now need shoe sole cleaners. The shoe cleaning machine has become an essential entrance cleaning equipment for companies with clean room.

For places where the flow of people is not too large, we recommend you use the boot cleaner machine, which length is around 1 meter. Models of ZS-SJ1001, 1002, 1004, 1005 boot scrubbers can satisfy you. It has no handrail and is light to clean the footwear. For the place with a lot of customers, according to the different visitors flow, you can choose a different dimension. We also have heavy duty boot cleaning machines with a length of 1 meter, 1.8 meters, 2 meters, and 3 meters. Of course, any size can be customized for you. In general, we add stainless steel handrails on two sides of the long industrial shoe cleaner machine. Especially, our high quality boot brush cleaner can also be installed in the air shower to wash the footwear.

5. Our Clients

Glikon automatic shoe sole cleaning machine was started in 2009. Until now, the sole cleaners have gone through eight times upgrades. During these 11 years, we keep updating and making the research and development. Many customers and enterprises appreciate our efforts. Our famous clients include Flex, Foxconn, Samsung, Jabil Group, etc.

Differences of shoe sole scrubber & industrial boot scrubber

Differences of shoe sole scrubber & industrial boot scrubber

Differences of shoe sole scrubber & industrial boot scrubber

1. Definition of shoe sole scrubber and boot cleaner machine

Automatic shoe sole scrubber is a kind of newly footwear cleaning device which can remove the dust, mud grass, and bacteria. Especially during the coronavirus crisis period, we can use its function of sanitizing shoes to make long lasting infection control. This product is suitable for indoor outdoor use, not only at home but also in the office, laboratory, TV station, hotel, photo studio, etc.

According to the different use, there is a wide variety of boot scrubber. For example, the mine shoe cleaning machine is mainly used to clean the heavy duty rubber boots of coal mine workers. It is one of the commonly used boot scrubber equipment in coal mines. And the boot washer is effectively waterproof, anti-static, wear-resistant, corrosion-resistant and easy to use. There are also boot cleaning machines products for food processing plants, hospitals and pharmaceutical factories. People use brush boot cleaner as a hygiene station. They make footwear cleaning and sterilizing on this hygiene station by adding disinfectant to the water tank.

2. Shoe sole scrubber working principle

For boot sole cleaner, when people step on the quick clean area, they trigger the induction switch. Then the solenoid valve will open, and circulating water begins to work. If the position of boot washing station is not suitable for circulating water, you can also add clean water to the waterline. At the same time, motor drives boot brush cleaners for 4-6 seconds reciprocating motion. Step on the two side brushes, soft bristles on the scrubber brushes boot scrapers are exposed 3-4mm upward. Thus, boot scrapers can reach the aim of long lasting cleaning shoe soles and sides.

When workers enter or go out the mine head, they come close to the stainless steel industrial boot cleaner. The human body infrared sensor works automatically (you can also manually press the button). It transmits the signal to PLC master, then output information, start the motor of the boot cleaner machine and open the high-pressure electric ball valve or water pump. People walk on soft bristles of boot scrubbers products, and the shoe brush roller automatically scrubs coal dust, mud grass and other dirt on the boots or shoes.

People go through the station, the stainless steel boot cleaner machine and shoe sole scrubber will automatically control the water, electrical and motor systems. They can clean the dust and grime off your boots in one go.

3. Features of Boot Sole Cleaner & Boot Wash Station

3.1 Boot sole cleaner

The body of the shoe sole scrubber is made of united states stainless steel plate through laser cutting, cold rolling and hot melt grinding. Bootwash station is beautiful in appearance, reasonable in color matching, durable and long lasting. The whole original boot cleaner machine needs 110-220V power supply during operation. In the current industry in the world, Glikon has all rights reserved boot wash station for sale, most countries are available including United States. If you want to buy, click here and add what you want to the shopping cart, or contact sales email address: sales@glikon.com. And our long lasting boot scrubber has reached the advanced international level! And we have received high quality customer reviews from users. Click here to learn more about our product information. The shoe soles cleaning machine is composed of two areas: one quick clean area and one drying area. In the footwear shoes clean area, people walk on it. During this process, the boot washing machine dissolves, rubs, and cleans the dust on the sole of boots or shoes repeatedly and continuously with bottom and side brushes. Eventually, it achieves the effect of completely removing dust from the shoes sole. The quick dry area of boot and shoe cleaner mainly includes a piece of special material dry cotton. It can absorb the residual moisture in the footwear sole within 1.0 second. After completing this series of work with boot washers, employees can smoothly enter the workshop. The whole process should be completed in about 15 seconds!

Water change method

There are two ways to change the water of the indoor outdoor heavy duty footwear sole cleaning machine. On the touch panel of footwear scrubbing system, there are several colors indicator light of full, medium and low. And each color indicator light has its speacial meaning. Turn on the switch, the empty indicator light disappear, machine begin to work. When the “full” indicator light is on, it’s time to clean. Semi-automatic equipment requires manual water exchange and drainage. For automatic shoe sole cleaning machine, there is no need. People stand on boot washers, bristle brushes on the shoe cleaner scraper clean soles of their boots or shoes. After being used for 20 minutes or more, the boot sole cleaner will automatically start the sewage high-pressure water pump. When the wastewater washed inside it is discharged through the drainpipe, the heavy duty shoe sole scrubber automatically injects clean water to realize the automatic water change function!

Sewage discharge method:

After the shoe brush cleaned soles and sides of the boots, dust and water are together and form sewage. After passing through the surface diversion channel, they automatically enter the sewage channel of the boot washing machine. Under the natural water pressure difference, the sewage in boot washers is discharged into the connected sewage pipeline! When all personnel enter the workshop through the industrial boot wash station, the equipment will stop working in time.

Maintenance method:

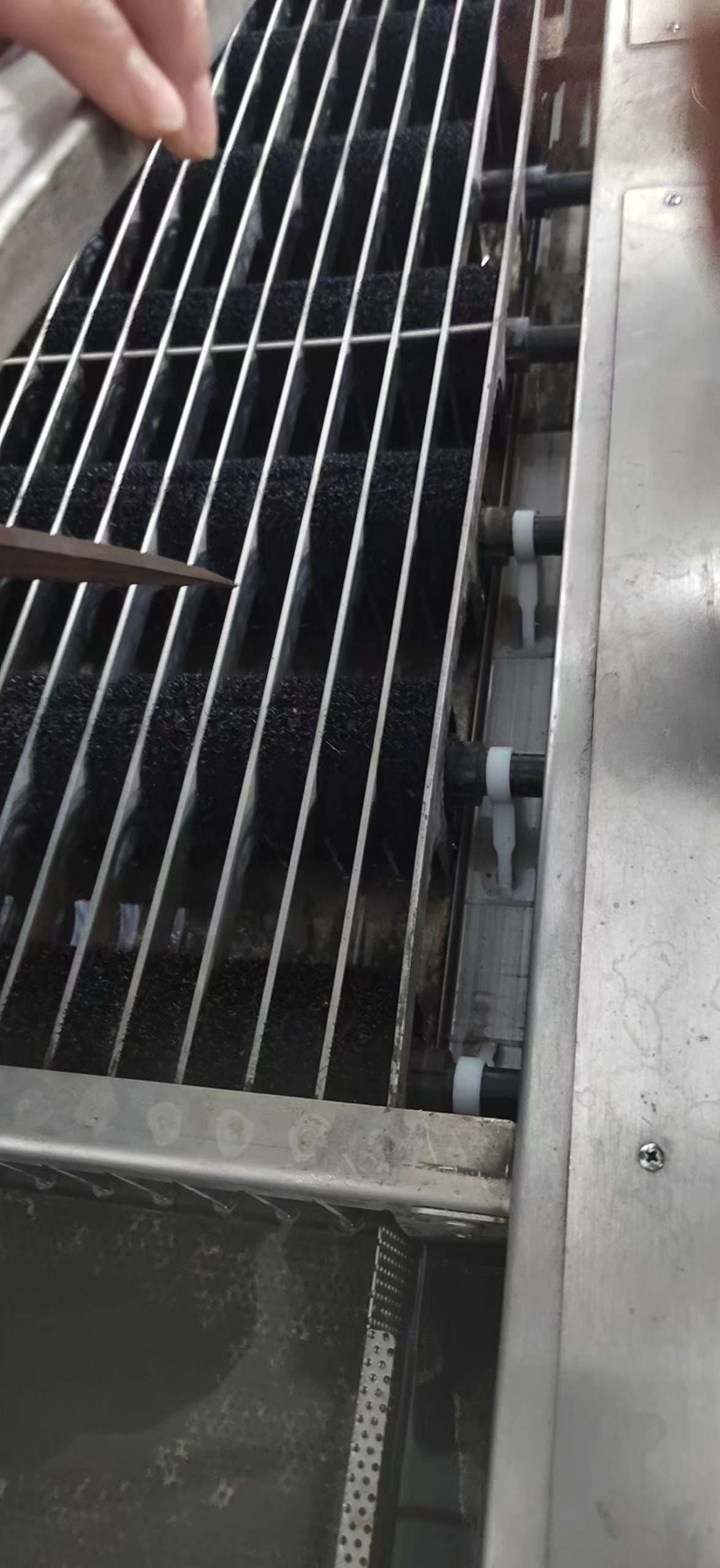

For daily maintenance, wash the water basin of the scraper and cleaner once every 2-3 days during normal use. And it is to prevent the drain outlet washed by the boot brush from being blocked by garbage. There will be a small amount of residual dust on the surface of the boot washer, which can be rinsed with a small amount of clean water. For key maintenance, it occurs when you use the industrial boot scrubber for 3 to 4 months. You can use one suction vacuum cleaner to clean the sewage tank to prevent clogging! When there is no person passing by, the scrubber boot brush scraper stops working, and boot cleaning machine product automatically enters the static state. Therefore, it will not cause a waste of resources. When someone passes, the footwear boot scraper will automatically run. After the person walks by, the product machine stops and truly achieves the effect of environmental protection and energy saving.

3.2 Boot wash station

Long service life

The chassis of high quality product footwear cleaning machines is welded with special stainless steel profiles. With a unique automotive chassis design principle, it ensures the precision operation of all parts of the boot cleaner scrubber product. And its craft modelling is dignified and generous.

By citing variable frequency drive and electric control technology, each induction of boot cleaning system has achieved a soft start and soft stop. It greatly reduces the impact of frequent startups on products components of boot cleaners. So that each drive component can maximize the service life, thereby greatly extending the life of the whole boot cleaning machine. The base for boot wash station adopts ultra-thin design. It is directly installed on the ground without destroying the ground decoration in the early stage of installation. And it’s particularly convenient for footwear cleaner machine maintenance.

Easy to use

The centralized drainage design of footwear boot scrubber solves the blockage caused by dirt collection in the pit well. And it also better solves the corrosion caused by the pit moisture to the internal components of the equipment. Besides, some machine uses high quality Rhino Bilt boot scraper. Thus, it greatly extends the product service life of the shoe cleaner scrubber.

By following the walking-type shoes clean and wash concept, and there is no need for staff to stay on boot washers. You can quickly and thoroughly clean the dirt on the soles and sides of the boots by walking directly. As a result, this kind of industrial boot cleaner can be used in places with a large flow of people. And the channel footwear cleaning technology provides effective support for the standardization and intelligent management of large and medium-sized coal mines.

Boot scrubbers adopt synchronous cleaning design of shoe soles and uppers. Besides, it integrates advanced flat channel shoe wash technology, and the cleaning does not leave any dead corners. Compared with the traditional step-by-step cleaning design of shoe soles and uppers, it has the advantages of high cleaning efficiency, good effect and no cleaning blank. Also, the boot washing machine has features of small size and compact structure.

The entrance and exit of the boot and shoe cleaner also use exclusive waterproof technology. Because it can effectively control the pollution caused by the water from bristle brushes to the surrounding ground during the use of products footwear cleaning machines.

4. Conclusion

Both shoe sole cleaner machine and boot cleaner machine are useful and helpful to keep places clean. The former is always applied at home, office building, hotel and other places to only wash the sole. And we often use boot cleaners products in heavy dust or dirt places to clean mud grass, snow, gravel, rock, sand on boots and shoes. For example, It can not only clean the sole but also sides of the boots. But for some expensive and easily damaged shoes, you’d better not use it when wearing them.
