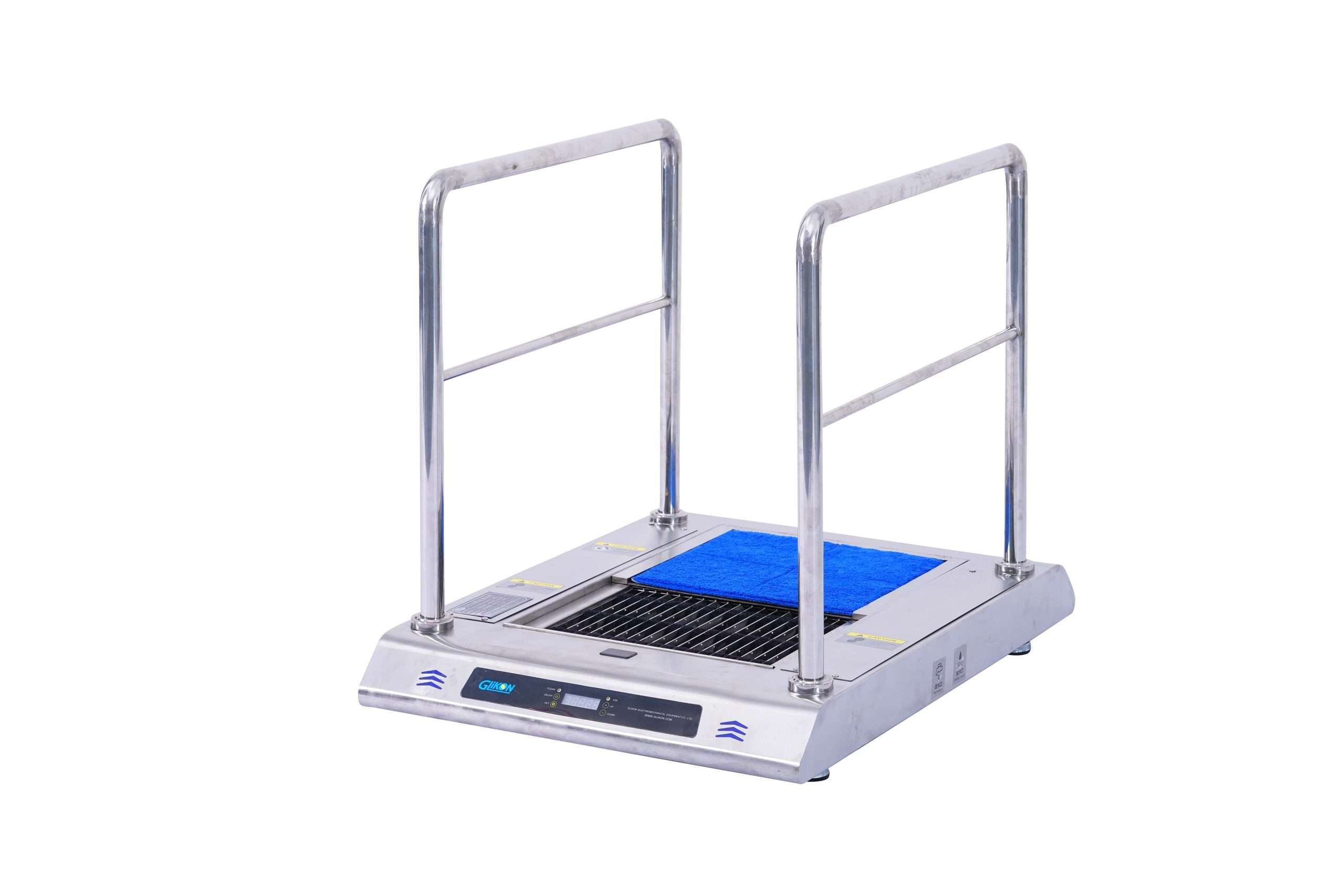

360° Roller-type Shoes Cleaner Machine with handrails N-SJ1050

$1,388.00

1.Completely automatic design.
2.The quickest response speed.
3.User time and energy is saved.
4.Innovative structure.
5.Excellent cleaning and disinfecting effects.
6.Extended service life.
7.Convenient cleaning management.

Category:

Quick Delivery

Optional Shipping

Reliable Warranty

1 Year Warranty

Customer Service

Persistent Support

The Comparison and Contrast of Crawler-type and 360°Roller-type Shoes Cleaner Machine

As you know, Glikon has been a leader in the sole cleaning machine industry since 2009. We keep developing state-of-the-art shoes cleaner machine for customers at home and abroad. So far, we have upgraded to the fourth generation of our 360° round-trip roller-type shoe sole cleaner machine. In fact, the 3rd generation Crawler-type boot cleaning station and the 4th generation roller-type boot washer station are basically the same in function, but there are also many differences.
In this article, we will focus on the similarities and differences between the crawler-type shoe bottom cleaner and the roller-type shoe scrubber machine, so that customers can have a better understanding of our shoe cleaning equipment.

1.The Similarities of the 3rd and the 4th generation shoes cleaner machine:

1. Starting Method

The sole washing machine is built-in infrared sensor. With the microwave induction start, the shoe cleaning station stop automatically when people leave.

2. Cleaning and Drying Time

From cleaning soles to automatic drying, the whole process takes about 3-5 seconds.

3. Drainage Mode

The user can clean the sediment either automatically or manually. According to the conditions of the installation site, users can freely choose the mode of water intake and drainage. If the boot wash station can be accessed around the water inlet and drain pipe, then the user can set the industrial shoe cleaner machine into automatic mode. In this case, water intake and waste drainage can be done automatically. On the contrary, the user has to open the panel, press the suction switch, and use the suction device to drain and change the water by hand.

The Differences of the 3rd and the 4th Generation Shoes Cleaner Machine:

1. Cleaning Principle of Shoes Cleaner machine

A. Crawler-type Electric Boot Cleaner
The motor drives the bearings to rotate multiple belts in order to clean shoe bottoms longitudinally without dead angle.
Disadvantages: 1. The length of the cleaning area determines the circumference of the belt brushes. The longer the industrial shoe cleaning machine is, the greater the working load of the belts. In this way, the belt brushes get worn and torn easily. Then the service life of the belts, bearings get shorter.
B. Roller-type Shoes Cleaner Machine
The motor drives the bearings, so that the individual ball brushes can clean 360 degrees without dead angle.
Advantage: The ball bristles are independently designed without working load, and the service life of the shoe cleaning industrial machine is prolonged.

2. Improvements in Suction Device

1). With Waterproof Effect

The suction motor of the crawler-type machine is not waterproof and easy to break down. If the user accidentally gets the motor wet in the process of using, the suction motor will burn out easily, and then the manual suction work can’t go on. In contrast, the suction motor in the roller-type automatic shoe cleaner is much better, which can work well in both wet and dry area. As a result, the improvement greatly extends the service life of the suction motor and reduces the cost of maintenance.

2). The Function of Automatic Dirt Sucker is increased:

First, the dirt sucker is used for regular automatic cleaning of sediments in the sink.
Two, In the user’s installation area, if there is no condition to connect the machine to the inlet pipe and the drain pipe, then the suction device can be used to change the water and drain the sewage.

3. Replacement Costs

A. Crawler-type Automatic Shoe Cleaner

The longer the motorized shoe cleaner is, the longer the belt will be. Belts and brushes need replacing at the same time, and the consumable parts are fragile and costly to use in the long run. Let’s take P-SJ2000 machine as an example: a single belt costs 25USD. There are 21 belts in a whole machine. the replacement cost of all the belts is 525USD. If you change the belts once a year, then the replacement cost is 525USD/year. As a result, 2-year replacement cost of consumables can be usded to buy a new machine.

B. Roller-type Automatic Shoe Sanitizers

The ball is made of special rubber moulded in one go, which is very strong and durable. Users can use it for a long time without replacing the balls. And the single strip is 22cm long, fixed on the ball. If the strip get worn and torn, just replace the surface of the furring strips rather than all the rollers. The cost of a single furring strip is 0.1USD. Let’s take N-SJ1050 shoe cleaning stand for example. There are 126 balls in 1 machine. The fur strips need replacement once a year. The replacement cost in a year is 126*0.1USD=12.6USD/year. By contrast, the replacement cost is much lower than that of the crawler type.

4. Installation and Replacement Methods

A. Crawler-type Bottom Shoe Cleaner

When replacing the belts, you need to disassemble the bearings, shafts, and replace them one by one. The installation is troublesome and requires specialised personnel.

B. Roller-type Shoe Sole Cleaning Machine

When replacing the old furring strips, only the individual bristles on the surface need replacing instead of removing all of them. Users only need to use 1 screwdriver to unscrew the screws one by one. Even non-professionals can do it easily.

5. Different after-sales guarantee

A. Crawler-type Shoe Sanitizing Station

The consumable parts including belt brushes, suction motor, and water absorbent pads are not under warranty. The rest of electronic parts are guaranteed for 1 year.

B.Roller-type Sole Scrubber

The main motor, bearings, shafts, water inlet solenoid valve, water level sensor, shoe brush ball and other major accessories are guaranteed for 1 year. Consumable furring strips are free to provide material replacement within 1 year.
In conclusion, the 4th generation machine has many improvements than the old-version boot washing station. The roller-type is much better for its easy installation and lower replacement costs. If you want to get the best boot scrubber from our store, pls read this article carefully and make the best choice according to your personal needs. Don’t hesitate to select the model, and then add it to cart!

  • Dimension(MM):  1050*768*145
  • Clean Zone(MM):  350*480
  • Dry Zone(MM): 370*480
  • Water Absorbent Pad (MM): 370*430
  • Number of passer/minute: 10 persons/minute
  • Work Induction: Auto
  • Inlet Water Temperature: 1-40℃
  • Water Tank Capacity: 10L
  • Water Change Method: Manual/Auto
  • Sediment Cleaning Method: Dirt Suction
  • Suction Power: DC 100W
  • Working Voltage: AC220V
  • Working Current: 1A
  • Motor Voltage/Power: AC220V/90W
  • Pump Voltage/Power: DC24V/75W
  • Pump Head: 10 Meter
  • Security: Overload/leakage protection
  • Brush Rotation Speed: 60RPM
  • Noise: <60DB
  • Main Body Material: SUS304
  • Maximum Load Capacity: 100KG
  • Main Body Life: 6 Years
  • Weight: 100KG
  • Warranty: 1 Year
  • Input Voltage: We will choose the corresponding voltage model according to the destination country of your order
  1. Water Absorbent pad *3
  2. Power Supply Line *1
  3. DC Converter *1
  4. Suction Motor *3
  5. Sole Cleaning Machine *1

Frequently Asked Questions about Shoes Cleaner Machine

1. How to clean muddy boots with the sole scrubber?

Just step onto the cleaning area of the shoe shiner machine, then the roller-type brush will start to rotate forward and backward. Then the mud will go into the sink and move to the vacuum bag. After that, walk on the water absorbent pad, then your boots will get clean and dry.
